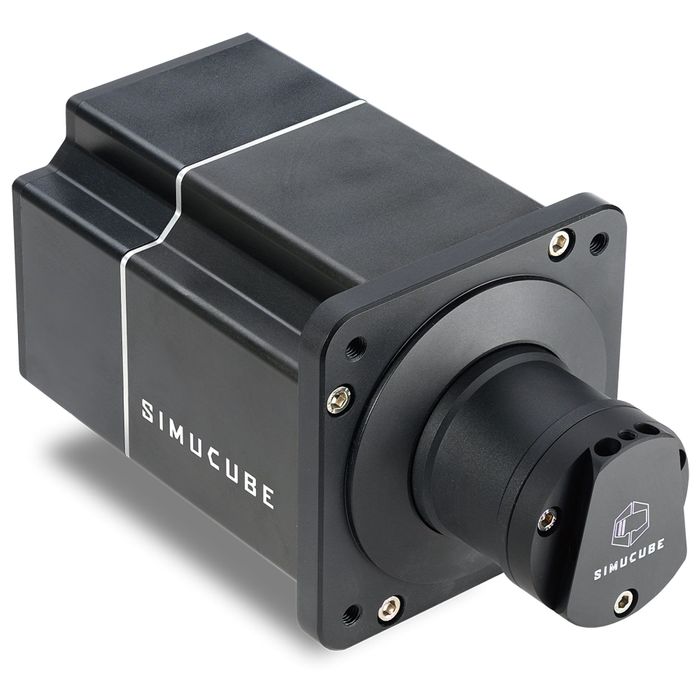

Simcube 2 Sport Direct Drive System
Description
New Updated Packaging, Quick Release now sold seperately, CLICK HERE.
Simucube 2 Sport wheel base puts its driver ahead of any non-direct drive racer by a huge margin. High-end Direct Drive wheel base not only gives undeniable competitive advantage, but also puts a massive grin to the drivers face from the sheer joy of racing.
Sport comes with 17 Nm of direct drive torque and with the major Simucube 2 benefits of advanced filters and custom built motors. Sport does offer serious amounts of power, do not underestimate the capabilities of this motor!
According to our internal testing, this force feedback wheel base has similar response to the very best of the premium motors on the market.
Sport will be most suited for sim racers and league racers who want great performance and value! Its power is enough to authentically replicate anything but the highest downforce formula cars.
The new dual CPU 216 MHz processor features superscalar ARM architecture, making it effectively four times faster than the 72 MHz processor of IONI drive in Simucube 1.
Simucube 2 power MOSFETs are rated over 2X their actual need to make them virtually immortal.
Included with SC2 Sport wheel base:
- Power Supply
- All required cables
- Standard Torque Off Button
- Fixings for Wheel Base
- Pin for Simucube Quick Release
Does NOT include: Simucube Quick Release Side Parts
Technical specifications and features:
- Simucube Wireless Wheel™ support Yes
- Simucube Quick Release™ Yes
- Torque reconstruction processing Yes
- Static force reduction Yes
- Natural damping, inertia and friction filters Yes
- Ultra low latency mode Yes
- Adjustable torque slew rate limit No
- Non-linear force saturation No
- Super fine tuning filters: No
- Factory Calibration: Cogging calibrated
- Max Torque: 17 Nm
- Isolated surge protected USB port: Yes
- Max Force Slew Rate: 4.8 Nm/ms
- Angle Sensor Resolution: 22 bit
- Torque Off Button: Standard (premium optional)
- Power supply: 280 Watt
- Physical size: 130 x 130 x 250 mm
- Fixing holes M8 x 4 pcs
- Screw bolt pattern dia 145 mm
- Flange centering hole dia 110 mm
- Warranty: 24 Months
